HDPE / PP Woven Sacks Automatic Cutting Machine

Delivering Excellence through Innovation

The N-TEX HDPE / PP Woven Sacks Automatic Cutting Machine is designed for high-speed cutting of laminated HDPE and PP woven fabric rolls. Equipped with a servo-driven motor and controller, digital cut-length setting, automatic bag counting, and a photocell for printed bag registration, it supports accurate and efficient cutting with reduced manual intervention.

Download Brochure

Fully Automatic Cutting

Automates the fabric cutting process to reduce manual handling and improve production efficiency.

Servo-Driven Precision

Servo motor control and digital cut-length settings help maintain consistent bag dimensions.

Photocell Registration

A photocell detects printed fabric marks to support accurate cutting of printed bags.

Digital Bag Counting

Tracks the number of bags cut to help operators monitor production quantities.

Heavy-Duty Construction

A sturdy cast body and pneumatic roll-lifting arrangement support industrial operation and roll loading.

Description

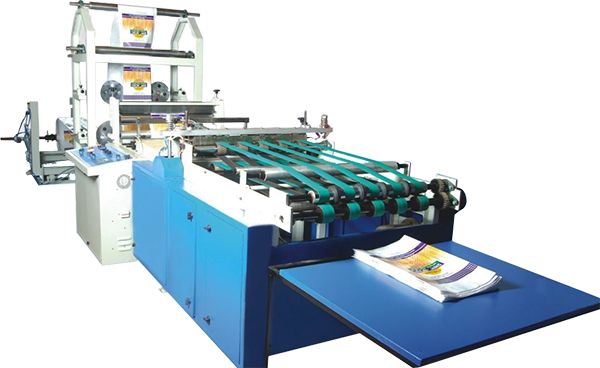

The N-TEX HDPE / PP Woven Sacks Automatic Cutting Machine is engineered to cut laminated HDPE and PP woven fabric rolls into required bag lengths. Its fully automatic operation, servo-driven controller, and digital length setting help improve cutting consistency while reducing operator intervention. With a stated maximum speed of 55 metres per minute and a working width of 32 inches, it is suited to woven sack manufacturing operations requiring efficient fabric cutting. The machine uses a scissor-type blade cutting system and includes a photocell for cutting printed fabric at the required position. Additional features include digital bag counting, pneumatic roll lifting, an AC main motor, and a heavy-duty cast body. An air compressor is required for pneumatic operation. The machine is supplied with a control panel and is designed for three-phase, 440 V AC power. Actual output and cutting accuracy depend on fabric characteristics, cut length, print registration, and operating conditions.

Key Features

Fully automatic cutting of laminated HDPE / PP woven fabric rolls.
Servo-driven motor and digital controller.
Digital cut-length setting.
Photocell for printed bag cutting.
Scissor-type blade cutting mechanism.
Digital bag counting.
