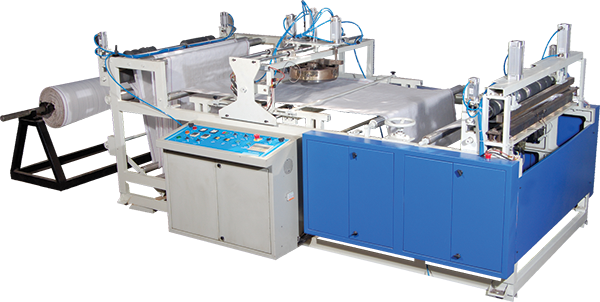

FIBC's Fabric Cutting Machine with Online Spout Making Arrangement

Delivering Excellence through Innovation

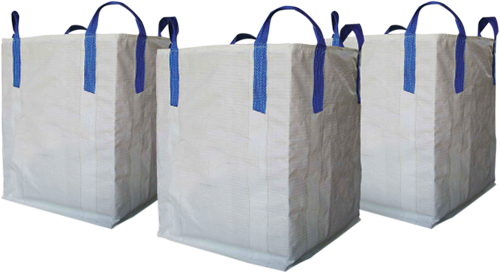

The N-TEX FIBC Fabric Cutting Machine with Online Spout Making Arrangement is designed for cutting wide-width fabric used in Flexible Intermediate Bulk Containers (FIBCs), jumbo bags, and bulk bags. Available in Jumbo-44 and Jumbo-88 models, the machine features servo control and supports cutting lengths from 500 to 4000 mm, with optional equipment for spout-related operations.

Download Brochure

Wide-Width Fabric Cutting

Available in two model configurations with listed fabric widths of 1200 mm and 2200 mm.

Servo-Controlled Operation

Servo control supports accurate cutting-length settings for FIBC fabric preparation.

Spout-Making Arrangement

Designed for applications involving spout preparation, with optional spout-related equipment available.

Two Model Options

Choose between Jumbo-44 and Jumbo-88 according to required fabric width and production needs.

Description

Detailed Description The N-TEX FIBC Fabric Cutting Machine with Online Spout Making Arrangement is designed for processing wide-width fabric used in the manufacture of Flexible Intermediate Bulk Containers. It is available in two configurations: Jumbo-44, with a listed width of 1200 mm, and Jumbo-88, with a listed width of 2200 mm. Both models support cutting lengths from 500 to 4000 mm and have a specified nominal speed of up to 25 metres per minute, depending on material type, gauge, and bag length. The machine uses an AC main motor and a servo-based control system. Optional equipment includes an Edge Position Controller (EPC) for spout-related operations and a spout arrangement. This configuration is intended for FIBC manufacturers seeking fabric-cutting equipment suited to their bag dimensions and production workflow. Confirm the exact scope of online spout making with N-TEX before ordering.

Key Features

Designed for wide-width FIBC fabric cutting.
Suitable for jumbo bag and bulk bag manufacturing.
Two models: Jumbo-44 and Jumbo-88.
Cutting length range of 500–4000 mm.
Listed speed of 25 m/min, depending on material and bag specifications.
AC main motor with servo control system.
